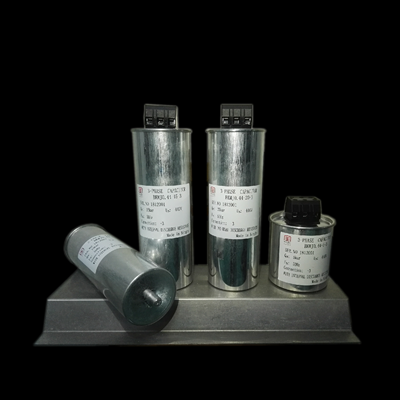

QA1 - BKMJ/BZMJ series, 0.42-1.3KV AC shunt capacitor

Applicable scope and functions: for low voltage power supply and distribution AC 400/525/600/690/1000/1250V, 50/60Hz, reactive power compensation and filtering

Product Features:

•  Special autoclaved metalized film, high reliability of self-healing

• dry type/ oil immersed

• Standardized/modular design for different capacity combination and installation

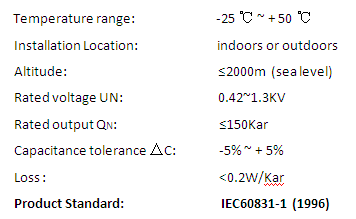

Conditions of use/Technical parameters/Product standard：

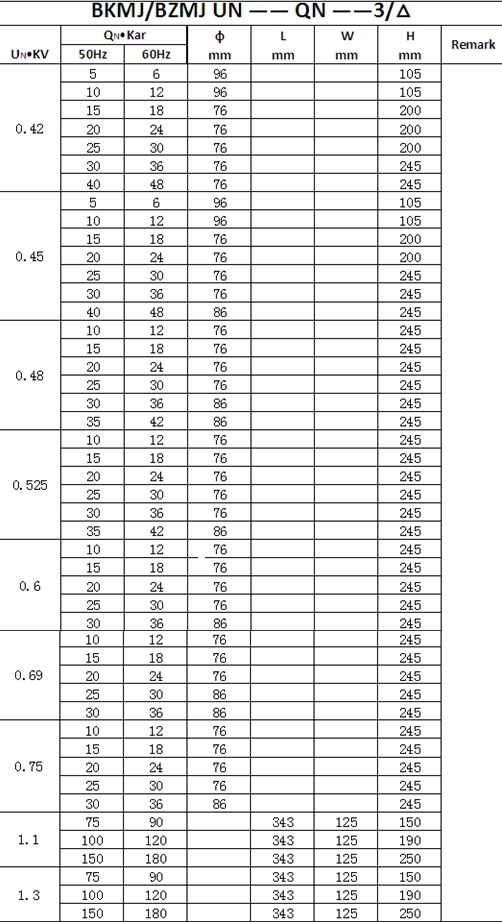

Product Specifications:

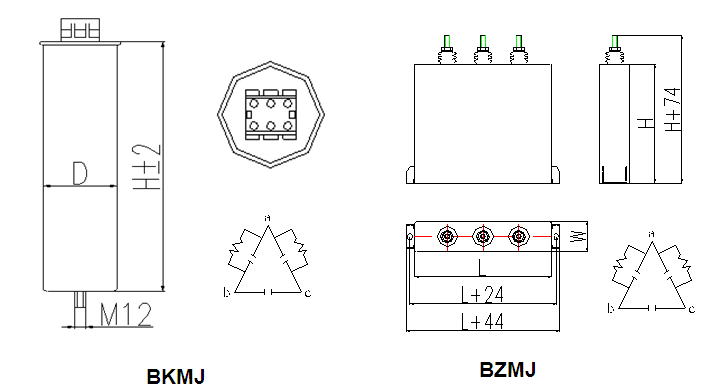

Product Drawings:

Perv: no product

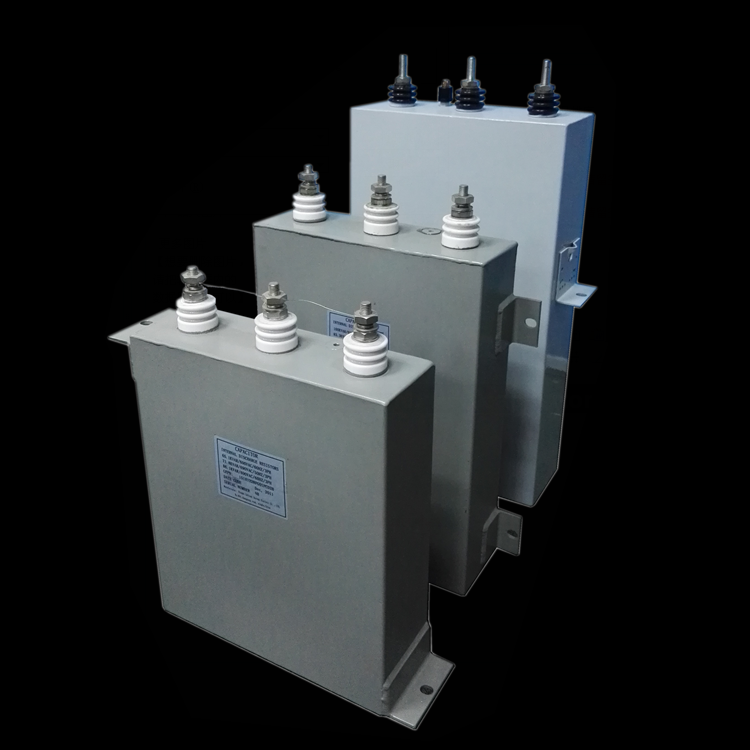

Next: QA2-BFM series, 3/6/10KV AC shunt capacitor
