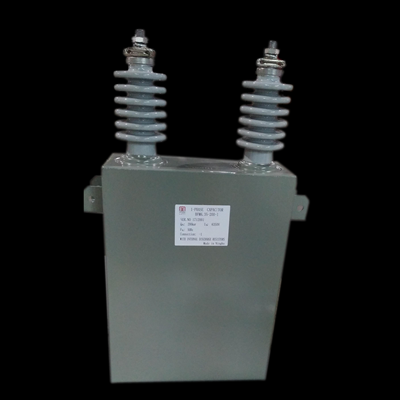

    QA2-BFM series, 3/6/10KV AC shunt capacitor

    Applicable scope and functions: for 3/6/10KV power line, reactive compensation and filtering.

    Product Features:

    •All-film (Full foil) oil immersed structure, NO PCB
    •Low loss and long life

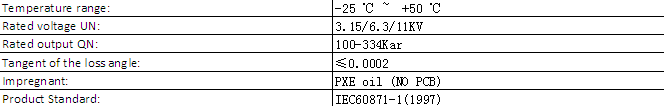

    Conditions of use/Technical parameters/Product standard：

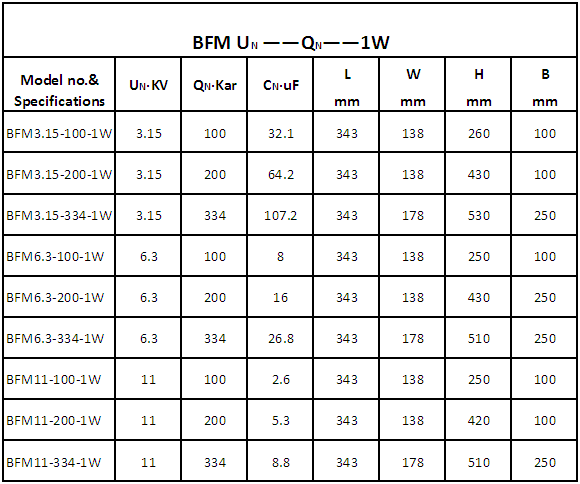

    Product Specification：

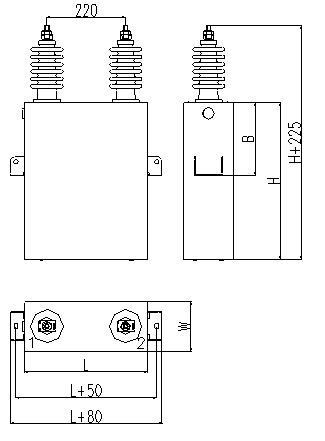

    Product Drawings:
